PB138 — Transforming XML Data, XSLT

Transformation Languages

XSLT: is the best known XML transformation language. The XSLT 1.0 W3C recommendation was published in 1999 together with XPath 1.0, and it has been widely implemented since then. XSLT 2.0 has become a W3C recommendation since January 2007 and implementations of the specification like Saxon 8 are already available.

Transformation Languages (2)

XQuery: is a full functional language, despite having "query" in the name. It is a de facto standard used by Microsoft, Oracle, DB2, Mark Logic, etc., is the foundation for the XRX web programming model, and has a W3C recommendation for versions 1.0. XQuery is not written in XML itself like XSLT is, so its syntax is much lighter. The language is based on XPath 2.0. XQuery programs cannot have side-effects, just like XSLT and provides almost the same capabilities (for instance: declaring variables and functions, iterating over sequences, using W3C schema types), even though the program syntax are quite different. XQuery is logic driven, using FOR, WHERE and function composition (e.g. fn:concat("<html>", generate-body(), "</html>")). In contrast, XSLT is data-driven (push processing model) where certain conditions of the input document trigger the execution of templates rather than the code executing in the order in which it is written.

Transformation Languages (3)

XProc: is an XML Pipeline language. The XProc 1.0 W3C Recommendation was published in May 2010.
XML document transform: is a Microsoft standard for performing simple transforms on XML documents. Primarily for creating IIS Web.config files (Config Transforms), other implementations allow it to be used for generic config files as build time (Slow Cheetah) or from the command line (CTT).
STX (Streaming Transformations for XML): is inspired by XSLT but has been designed to allow a one-pass transformation process that never prevents streaming. Implementations are available in Java (Joost) and Perl (XML::STX).
XML Script: is an imperative scripting language inspired by Perl that uses the XML syntax. XML Script supports XPath and its proprietary DSLPath for selecting nodes from the input tree.

Transformation Languages (4)

FXT: is a functional XML transformation tool, implemented in Standard ML.
XDuce: is a typed language with a lightweight syntax, compared to XSLT. It is written in ML.
CDuce: extends XDuce to a general-purpose functional programming language, see CDuce homepage.
XACT: is a Java-based system for programming XML transformations. Notable features include XML templates as immutable values and a static analysis to ensure type safety using XML Schema types (XACT home page).

Transformation Languages (5)

XFun: is a functional language X-Fun for defining transformations between XML data trees, while providing shredding instructions. X-Fun can be understood as an extension of Frisch’s XStream language with output shredding, while pattern matching is replaced by tree navigation with XPath expressions. ([1])
XStream: is a simple functional transformation language for XML documents based on CAML. XML transformations written in XStream are evaluated in streaming: when possible, parts of the output are computed and produced while the input document is still being parsed. Some transformations can thus be applied to huge XML documents which would not even fit in memory. The XStream compiler is distributed under the terms of the CeCILL free software license.

Transformation Languages (6)

Xtatic: applies methods from XDuce to C#, see Xtatic homepage. HaXml::is a library and collection of tools to write XML transformations in Haskell. Its approach is very consistent and powerful. Also see this paper about HaXml published in 1999 and this IBM developerWorks article. See also the more recent HXML and Haskell XML Toolbox (HXT), which is based on the ideas of HaXml and HXML but takes a more general approach to XML processing.
XMLambda (XMλ): is described in a 1999 paper by Erik Meijer and Mark Shields. No implementation is available. See XMLambda home page.

Transformation Languages (7)

FleXML: is an XML processing language first implemented by Kristofer Rose. Its approach is to add actions to an XML DTD specifying processing instructions for any subset of the DTD’s rules.
Scala: is a general-purpose functional and object-oriented language with specific support for XML transformation in the form of XML pattern matching, literals, and expressions, along with standard XML libraries.[1]
LINQ to XML: is a .NET 3.5 syntax and programming API available in C#, VB and some other .NET languages. LINQ is primarily designed as a query language, but it also supports XML transforms.

Extensible Stylesheet Language Transformation (XSLT)

XSLT is a language for specifying transformation of XML documents on the (usually) XML outputs, or text, HTML or other output formats.
The original application area, the transformation of XML data to XSL:FO (XSL-Formatting Objects), thus rendering XML.
XSLT specification was therefore part of XSL (eXtensible Stylesheet Language).
Later, XSL was set aside and XSLT began to be seen as a universal general description language XML → XML (txt, HTML) transformations.
XSLT is a Turing-complete language

XSLT Original Purpose

XML to XSL-Formatting Object transformation

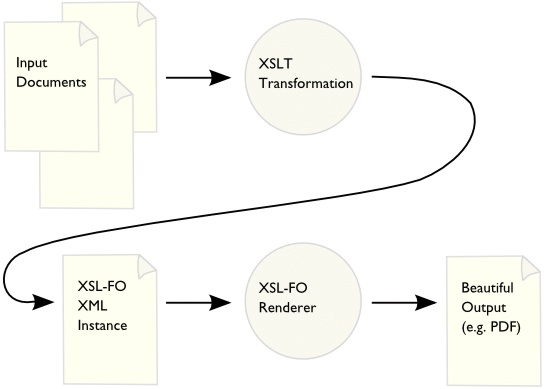

XSLT used to transform to XSL-FO (credit: W3C)

Now the General Goal

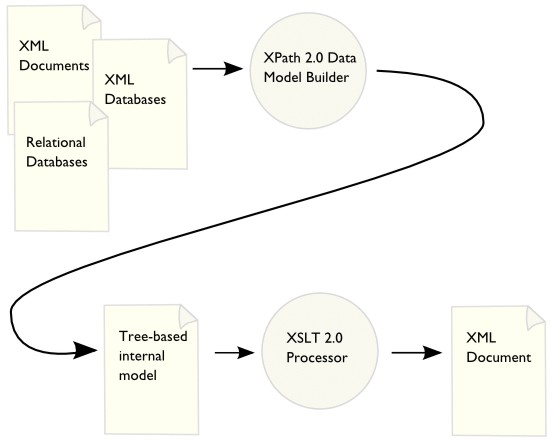

Now since 2.0, the goal is to enable transformations from any resources capable of building a XML Document Model from them.
So XSLT 2.0 processors can operate not only on XML but on anything that can be made to look like XML:
- relational database tables,
- geographical information systems,
- file systems,
- anything from which your XSLT processor can build an XDM instance.

Now the General Goal

Versions

The current versions are defined by the XSLT 1.0, 2.0 and 3.0 specifications:
- XSLT 1.0 XSL Transformations (XSLT) — W3C Recommendation 16 November 1999
- XSL Transformations (XSLT) Version 2.0 — W3C Recommendation 23 January 2007
- XSL Transformations (XSLT) Version 3.0 — W3C Last Call Working Draft 2 October 2014
- The version 1.0 is still widely used, mainly due to lacking (free) implementations of the newer specifications. Also, for many purposes, the features of 1.0 are sufficient.

The main principles

XSLT is a functional language, where reduction rules have the form of templates, which specify how nodes in the source document override output document.
XSLT transformation specification is contained in a style file (stylesheet), which is an XML document written in the XSLT syntax. The root element is either xsl:stylesheet or xsl:transformation (which are synonyms) where xsl: is a prefix for the XSL namespace.
The XSLT style(sheet) is then processed by an XSLT processor and subsequently,
XML file(s) can be transformed using that stylesheet.

Typical XSLT Workflow

XSLT style composition

XSLT stylesheet contains set of templates, represented by xsl:template elements.
Templates have a selection part corresponding with the left-hand side of a reduction rule in a functional language and the construction part representing the right-hand side of such a rule.

Example: XML Source

(Wikipedia, XSLT)

<?xml version="1.0" encoding="UTF-8"?>
<persons>
  <person username="JS1">
    <name>John</name>
    <family-name>Smith</family-name>
  </person>
  <person username="MI1">
     <name>Morka</name>
     <family-name>Ismincius</family-name>
  </person>
</persons>

Example: XSLT Stylesheet

(Wikipedia, XSLT)

<?xml version="1.0" encoding="UTF-8"?>
<xsl:stylesheet xmlns:xsl="http://www.w3.org/1999/XSL/Transform"
            version="1.0">
  <xsl:output method="xml" indent="yes"/>
  <xsl:template match="/persons">
    <root>
      <xsl:apply-templates select="person"/>
    </root>
  </xsl:template>
  <xsl:template match="person">
    <name username="{@username}">
      <xsl:value-of select="name" />
    </name>
  </xsl:template>
</xsl:stylesheet>

Example: Resulting XML

(Wikipedia, XSLT)

<?xml version="1.0" encoding="UTF-8"?>
<root>
  <name username="JS1">John</name>
  <name username="MI1">Morka</name>
</root>

XSLT Processing

XSLT processor (interpreter) takes the stylesheet (XSLT code)
Usually compiles it into an internal form.
Then it takes the nodes from the input document, looks for an appropriate template and select it.
Then it produces a result fragment corresponding to the construction part of the selected template.
Recursive takes next nodes from the input document and applies the same procedure for them.

Open-source XSLT Processors

libxslt: is a free library released under the MIT License that can be reused in commercial applications. It is based on libxml and implemented in C. It can be used at the command line via xsltproc which is included in OS X and many Linux distributions.
WebKit, Blink: used for example in the Safari and Chrome web browsers respectively, uses the libxslt library to do XSL transformations.
Saxon: an XSLT (2.0 and partial 3.0) and XQuery 3.0 processor with open-source and proprietary commercial versions for stand-alone operation and for Java, JavaScript and .NET. The open-source version does not support XSLT 3.0.

Open-source XSLT Processors (2)

Xalan: an open source XSLT 1.0 processor from the Apache Software Foundation available stand-alone and for Java and C++. Integrated into Java SE.
Web browsers: Safari, Chrome, Firefox, Opera and Internet Explorer all support XSLT 1.0. None supports XSLT 2.0 natively, although the third party products like Saxon-CE (Saxon-Client Edition) and Frameless can provide this functionality. Browsers can perform on-the-fly transformations of XML files and display the transformation output in the browser window. This is done either by embedding the XSL in the XML document or by referencing a file containing XSL instructions from the XML document. The latter may not work with Chrome because of its security model.
XMLStarlet: XMLStarlet is a command line XML toolkit which can be used to transform, query, validate, and edit XML documents and files using simple set of shell commands in similar way it is done for plain text files using grep/sed/awk/tr/diff/patch. It does not require Java. Available for Windows and Linux. Supports XSLT 1.0.

Commercial XSLT Processors

MSXML and .NET: includes an XSLT 1.0 processor. From MSXML 4.0 it includes the command line utility msxsl.exe.
QuiXSLT: an XSLT 3.0 processor doing streaming implemented in Java by Innovimax and INRIA.
Saxon: commercial versions support the newest standards such as XSLT 3.0.

Information Resources

W3C XSLT 1.0 Recommendation

XSLT 1.0 is still the most used version.

What is XSLT? on XML.COM

http://www.xml.com/pub/a/2000/08/holman/index.html

Mulberrytech.com XSLT Quick Reference (2xA4, PDF)

http://www.mulberrytech.com/quickref/XSLTquickref.pdf

Dr. Pawson XSLT FAQ

http://www.dpawson.co.uk/xsl/xslfaq.html

Zvon XSLT Tutorial

http://zvon.org/xxl/XSLTutorial/Books/Book1/index.html

Safari online XSLT Reference

XSLT Syntax

Basic XSLT Elements

'(From http://en.wikipedia.org/wiki/XSLT_elements)'

xsl:stylesheet: (or xsl:transform) is the top-level element. Occurs only once in a stylesheet document. The attribute version specifies which XSLT version is being used. The NS declaration xmlns:xsl specifies the URL, which is always http://www.w3.org/1999/XSL/Transform regardless of the XSLT version.
xsl:output: Child element of stylesheet. It describes how data will be returned. The attribute method designates what kind of data is returned (such as xml, text, html). The attribute omit-xml-declaration indicates if the initial <?xml heading should be included. The attribute encoding designates the encoding used for output.
xsl:template: Specifies processing templates “match” is when the template should be used. “name” gives the template a name which xsl:call-template can use to call this template.

Declarations in xsl:stylesheet

xsl:param: parameter declarations (and their implicit value). Such parameters can then be set when calling XSLT processing, e.g. java net.sf.saxon.Transform -o outfile.xml infile.xml style.xsl -Dparam=paramvalue
xsl:variable: similarly to parameters, it declares and initializes variables. They however cannot be set from outside. It should also be noted that XSLT (without processor-specific extension) is a pure functional language, i.e. applications of templates do not have side effects → variables (or parameters) can be assigned just once, then just read!

XSLT Templates

Template (xsl:template) is a specification which node should be rewriten and how (into what):

Which node is to be processed (i.e. rewritten), is described in the attribute match.
The resulting fragment (into what it is rewritten) is stated in the body of the template.
After processing of the source node, the processing continues at the nodes selected by xsl:apply-templates select="_<xpath expression>_".

The template can also be explicitly named (named template) using the name attribute, in which case it can be called directly / explicitly using xsl:call-template.

Modularization

xsl:import: Retrieves another XSLT file addressed by the href (URI of the file). The templates in the linking (originating) stylesheet have priority over the imported ones.
xsl:include: Similarly, but works as a textual (verbatim) include, so no prioritization of the linking stylesheet is done.

Processing modes

A template can specify a (processing) mode is which it can be activated.
The mode is indicated using the mode attribute at the xsl:template element.
Processing starts in no mode and
can be switched into another mode by using the attribute mode in the xsl:apply-templates or xsl:call-templates.

Where to use processing modes?

Motivation

Modes allow a parallel set of templates with the same patterns match, but used for different purposes, for example:

one set of templates for generating table of contents (index) from the document
one for the full text of the document itself

Transformation Process in Detail

First, the processor selects the root (document node) as the current node, i.e. the node corresponding to the XPath expression /
Then, it finds the template matching it. If it is found, the template is used for processing this node.
Otherwise, a default (implicit) template is used to process the document node.
The processing recursively continues at nodes selected by the template that has been used for processing in the previous step.

Template Priority

If there are two or more template matching, then ambiguity occurs and an error is emmited.
This situation can be avoided by distinguishing the templates by setting their priorities using their priority attribute. The priority can be an integer, greater number means higher priority.
Implicit templates have lower priority than explicit ones.

Template Invocation

Direct

xsl:call-template (possibly using xsl:with-params)

With implicit node selection

by applying a matching template (again may be with parameters) using xsl:apply-templates without explicit selection of nodes for further processing. Then, all child elements of the current (context) node will be selected and processed. Equivalent to xsl:apply-templates select="*".

With explicit node selection

when using xsl:apply-templates with explicit selection of nodes for further processing by using the select attribute.

In general, the preferred way is to avoid direct invocation because the other ways correspond better to the functional nature of the XSLT language.

Outputting text nodes

Either:

Type in text directly (as a literal) to output (body part) of the template. Be careful with the whitespace characters (spaces, CR/LF) as everything gets into the output.
When the whitespace handling is important, eg. no unnecessary whitespaces should be produced, use the special element xsl:text. Inside of it, whitespaces are always maintained!

Implicit/Default templates

Purpose: provide at least some standard "fallback" way to process basic structures such as traverse the document tree structure
to "save typing" frequently used templates (ignoring comments and PI).
These default templates have low priority and can be overriden by specifying explicit templates the same (or overlapping) match clause.
The following default templates are implicitly "embedded" in each correct XSLT processor.

Default tree (do-nothing) traversal

<xsl:template match="*|/">
   <xsl:apply-templates/>
<xsl:template>

Selects any element and the root.
Produces nothing for it but
traverses its all child elements.

Default tree (do-nothing) traversal for specified mode

<xsl:template match="*|/" mode="...">
     <xsl:apply-templates mode="..."/>
 <xsl:template>

Does the same but only for the specified mode.

Copy text nodes and attributes

<xsl:template match="text()|@*">
    <xsl:value-of select="."/>
 <xsl:template>

Copies text nodes and attributes to the result

Ignore PIs and comments

<xsl:template match="processing-instruction()|comment()" />

Ignores (does not include the results of the PI and comments)

Generating values programmatically

Not only elements, attributes and texts from the source are copied to the output.
All can be programmatically dynamically generated.

Generation of element with calculated attribute value

Objective: Generate the output of a predetermined element (with pre-known name), but with attributes with values with calculated during transformation.
Solution: Use the normal procedure - literal result element - attributes and values specified as the attribute value templates (AVT)

Example

Input

<link ref="a_link_href">
   ...
</link>

Template

<xsl:template match="link">
   <a href="#{@ref}"> ... </a>
</xsl: template>

Explanation

Transforms the link to a (possibly HTML) a element, the href attribute value is composed of # and the value of the original ref attribute.
Output
```
<a href="#a_link_href"> ... </a>
```

Generating with calculated element- or attribute name

Objective: Generate the output element whose name, attributes and content is NOT known in advance when writing the style. So it must be determined (calculated) in runtime (when transforming).
Solution: Use a template to component xsl:element

Example

Input

<generate element-name="elt_name"> ... </generate>

Template

<xsl:template match="generate">
   <xsl:element name="{@element-name}">
      <xsl:attribute name="id">ID1</xsl:attribute>
   </xsl:element>
</xsl:template>

Result: Creates an element with the name elt_name, equipping it with the attribute id="ID1". Also the attribute name could be generated if we wished so.

XSLT Conditional processing

Objective

To influence the output based on a condition.

Solution

Use branching in the template - either

xsl:if for single then/else branches or
multiway xsl:choose / xsl:when / xsl:otherwise

Example xsl:if

Input

<bread price="50"> ... </bread>

Template

<xsl:template match="bread">
   <p>
      <xsl:if test="@price > 30">
         <span class="expensive">Expensive </span>
      </xsl:if>bread - price <xsl:value-of select="@price"/> CZK</p>
</xsl:template>

Result: Creates an element p with a record about the bread. If the bread was expensive, also the "Expensive" indication is produced.

Example xsl:choose

Input

<bread price="12"> ... </bread>
<bread price="19"> ... </bread>
<bread price="30"> ... </bread>

Template

<xsl:template match="bread">
   <xsl:choose>
      <xsl:when test="@price > 30">
         <span class="expensive">Expensive</span>
      </xsl:when>
      <xsl:when test="@price < 10">
         <span class="strangely-cheap">Suspiciously cheap</span>
      </xsl:when>
      <xsl:otherwise>
         <span class="normal-price">Normal</span>
      </xsl:otherwise>
  </xsl:choose> bread - price <xsl:value-of select="@price"/> CZK
</xsl:template>

Result: Filters out the two extreme price level — normal prices remain for xsl:otherwise.

Loops

Input

<grocery>
  <bread price="12"> ... </bread>
  <bread price="19"> ... </bread>
  <bread price="30"> ... </bread>
</grocery>

Template

<xsl:template match="grocery">
   <xsl:for-each select="bread">
      <p> bread - price <xsl:value-of select="@price"/> CZK </p>
   </xsl:for-each>
</xsl:template>

Result: Creates series of elements p with bread prices.
Caution: Construction xsl:for-each typically has procedural nature, which is generally not recommended for XSLT as it namely gives minimum flexibility to iterate through the contents of a set of nodes — we must know its exact structures beforehand. The style is also more difficult to modify if the structure changes (eg. new or altered element names).

Template calls and parameters

Named template declaration: <xsl:template name="_thistemplatename_">. The template may contain declarations of parameters: <xsl:param name="_parametername_"/> (parameter type is not specified — i.e. dynamic typing)
Template call: using <xsl:call-template name="_atemplatename_"/> The call can also specify the parameters (if they were declared at the template definition): <xsl:with-param name="_parametername_" select="_parametervalueexpression_"/> or <xsl:with-param name="_parametername_">_parametervalue_</xsl:with-param>
Default parameter value: can also be specified using <xsl:param name="_parametername_" select="_defaultvalueexpression_"/>

Automatic (generated) numbering

Achieved by using xsl:number element
For either (or both): counting elements in input to allow automatic numbering — for example to number book chapters sequentially, or formatting numbers, eg. writing them in Arabic or Roman numbers. Resembles part of the internationalization support seen in java.text.
The autonumbering can also be multilevel eg. (sub)chapter numbers like 1.1 etc.

Example

Plenty of variants shown in XSLT Cookbook - Recipe of the Day

Example style from this article

<xsl:stylesheet version="1.0" xmlns:xsl="http://www.w3.org/1999/XSL/Transform">
  <xsl:output method="text"/>
  <xsl:strip-space elements="*"/>
  <xsl:template match="group">
    <xsl:text>Group </xsl:text>
    <xsl:number count="group" level="multiple"/>
    <xsl:text>&#xa;</xsl:text>
    <xsl:apply-templates/>
  </xsl:template>
  <xsl:template match="person">
    <xsl:number count="group" level="multiple" format="1.1.1."/>
    <xsl:number count="person" level="single" format="1 "/>
    <xsl:value-of select="@name"/>
    <xsl:text>&#xa;</xsl:text>
  </xsl:template>
</xsl:stylesheet>

Example (cont.)

Applied to (shortened)

<people>
  <group>
    <person name="Al Zehtooney" age="33" sex="m" smoker="no"/>
    <person name="Brad York" age="38" sex="m" smoker="yes"/>
  </group>
  <group>
    <person name="Greg Sutter" age="40" sex="m" smoker="no"/>
    <person name="Harry Rogers" age="37" sex="m" smoker="no"/>
    <group>
      <person name="John Quincy" age="43" sex="m" smoker="yes"/>
      <person name="Kent Peterson" age="31" sex="m" smoker="no"/>
    </group>
    <person name="John Frank" age="24" sex="m" smoker="no"/>
  </group>
</people>

Example (cont. 2)

Result

Group 1
1.1 Al Zehtooney
1.2 Brad York
Group 2
2.1 Greg Sutter
2.2 Harry Rogers
Group 2.1
2.1.1 John Quincy
2.1.2 Kent Peterson
2.3 John Frank

Namespace Handling

XSLT allows to select and produce nodes (elements, attributes) in namespaces.
However, it has some pitfalls, see Namespaces in XSLT issues
Multiple namespaces in XSLT
What can be done with Namespaces in XSLT 2.0
Avoid Namespace mistakes in XSLT at Developerworks

Where to do XSLT?

Online (just for fun)
In all XML professional editors and many programmers' IDE such as NetBeans
Command-line tools, such as xsltproc or xmlstarlet
From within Java programs using Java Core API (javax.xml.transform package)
Using specialized tools programmatically (via API) or command-line, such as Saxon
Similarly for other languages, almost all now have XML/XSLT support

Online Tools

Good for simple try-and-see:

Online XSLT engine @Freeformatter.com plus a demo XML input/XSLT/XML output
W3Schools online XSLT engine maybe even better :-)

With XSLT 2.0 support:

http://xslttest.appspot.com/

XSLT in NetBeans - steps

All recent NetBeans version allow to launch XSLT just by:

Opening an XSLT (or source XML) file
Click on the blue right arrow on the toolbar right
Specify source XML, XSLT, and output files
Run the transformation
Inspect the resulting file directly in the IDE

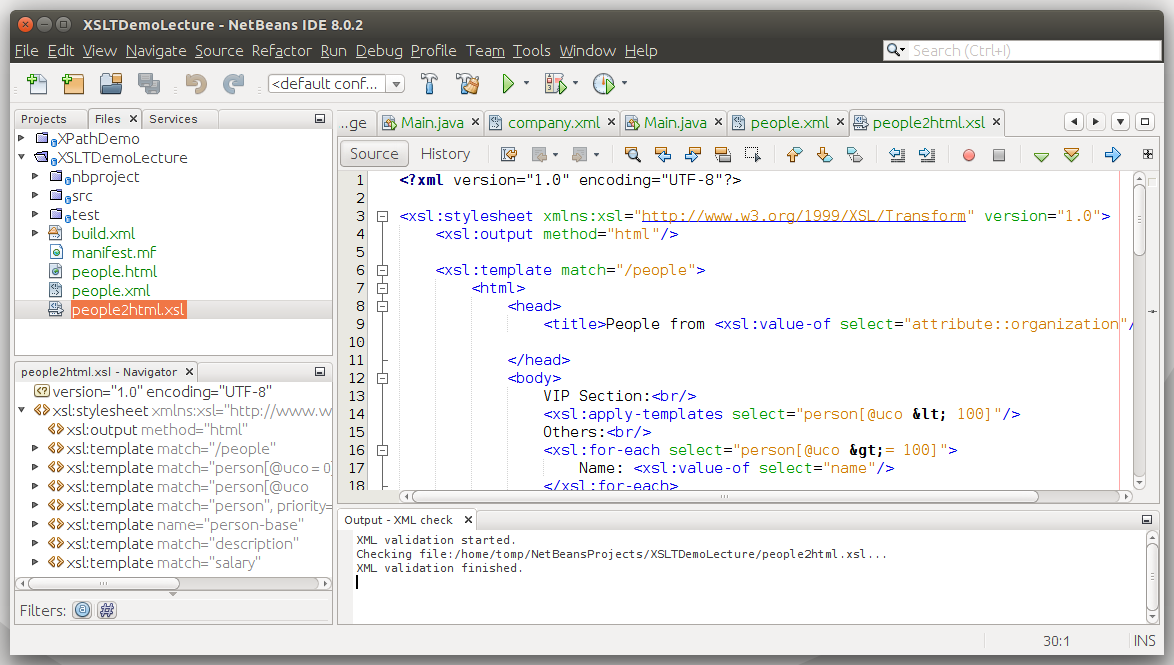

XSLT in NetBeans - screenshot

Using XSLT in Java (Core API)

See Using the XSLT Processor for Java from Oracle
