Approximation of Bit-Vector Operations for BDD-based SMT Solvers
Experimental evaluation

1. Tools
2. CSV files
- 2.1. Convert to a correct CSV
- 2.2. Split into benchmark sets
3. R environment
4. Statistics

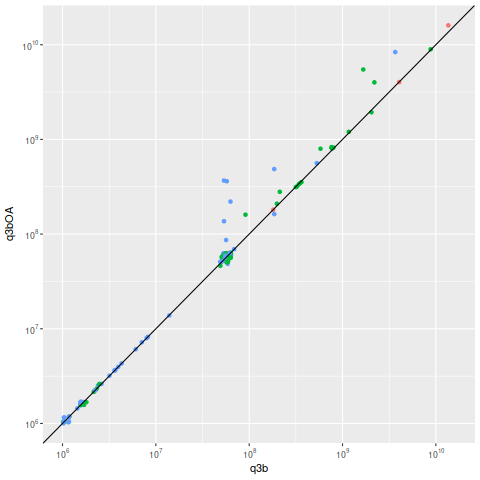

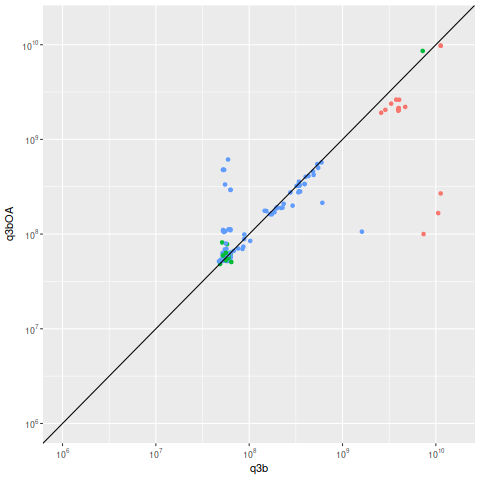

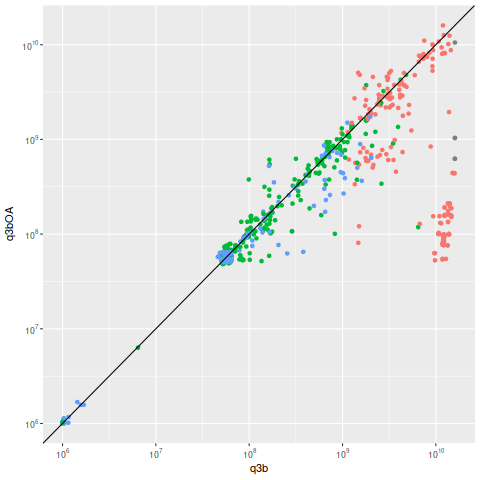

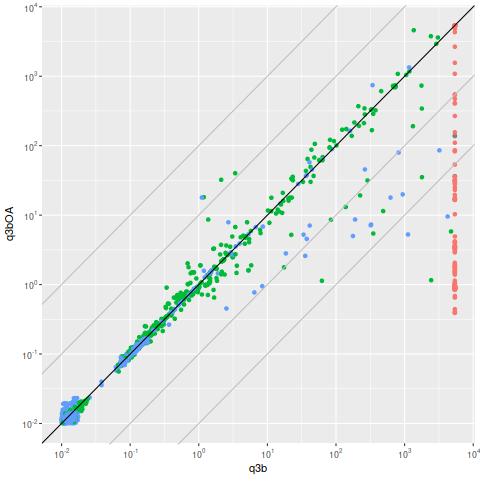

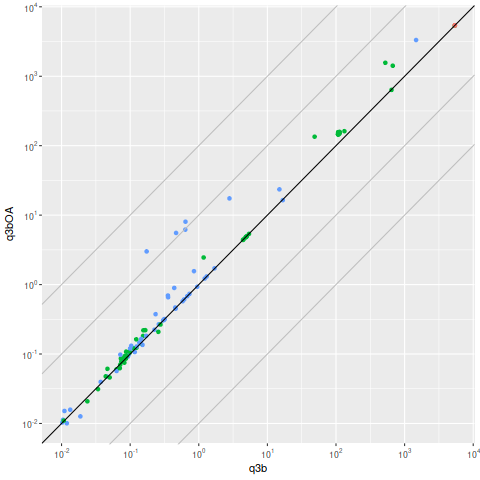

5. Plots

1 Tools

In the evaluation, we used the following tools

1.1 Boolector

in the version that entered SMT Competition 2017
using the following arguments from SMT Competition 2017
```
-uc --fun:preprop --prop:nprops:10000
```

1.2 CVC4

in the version provided with the paper On Solving Quantified Bit-Vectors using Invertibility Conditions (CAV 2018)

using the following arguments

--no-cond-rewrite-quant --cbqi-bv-ineq=eq-boundary --global-negate --no-cbqi-innermost --ext-rew-prep

1.3 Z3

in the stable version 4.6.0
using no additional arguments

1.4 Q3B (vanilla)

in the development version, GitHub release https://github.com/martinjonas/Q3B/releases/tag/ictac2018

using the following arguments

-A --approximation-method variables --propagate-unconstrained --check-models -r sift

1.5 Q3B (with operation approximations)

in the same development version, GitHub release https://github.com/martinjonas/Q3B/releases/tag/ictac2018

using the following arguments

-A --approximation-method both --limit-bddsizes --propagate-unconstrained --check-models -r sift

2 CSV files

All statistics are computed from the BenchExec CSV file results.csv.

2.1 Convert to a correct CSV

First, we need to replace tabs by commas:

sed -i 's/\t/,/g' results.csv

And then we remove the standard BenchExec header rows and replace them by more readable ones.

cat results_header.csv > results_out.csv
tail -n +4 results.csv >> results_out.csv

2.2 Split into benchmark sets

We split results according to the benchmark set and remove the temp file.

cat results_header.csv > data/wintersteiger.csv
grep wintersteiger results_out.csv >> data/wintersteiger.csv
sed -i 's#wintersteiger/fmsd13/##g' data/wintersteiger.csv
sed -i 's#/#,##' data/wintersteiger.csv
#separator is #, so we do not have to escape all backslashes

cat results_header.csv > data/preiner.csv
grep Preiner results_out.csv >> data/preiner.csv
sed -i 's#2017-Preiner/##g' data/preiner.csv
sed -i 's#/#,##' data/preiner.csv

cat results_header.csv > data/heizmann.csv
grep Heizmann results_out.csv >> data/heizmann.csv
sed -i 's#20170501-Heizmann-UltimateAutomizer/#,#g' data/heizmann.csv

rm results_out.csv

3 R environment

3.1 Load necessary libraries

library(dplyr)
library(ggplot2)
library(scales)
library(colorspace)
library(RColorBrewer)
options("scipen"=100, "digits"=0)

3.2 Load all CSV files

res = list()
res$wintersteiger <- read.csv("data/wintersteiger.csv", header=TRUE, stringsAsFactors=FALSE)
res$preiner <- read.csv("data/preiner.csv", header=TRUE, stringsAsFactors=FALSE)
res$heizmann <- read.csv("data/heizmann.csv", header=TRUE, stringsAsFactors=FALSE)

res$wintersteiger[["source"]] <- "wintersteiger"
res$preiner[["source"]] <- "preiner"
res$heizmann[["source"]] <- "heizmann"

configurations = c('boolector', 'cvc4', 'z3', 'q3b', 'q3bOA', 'q3bOAnoOpt')
labels = c(boolector = 'Boolector', cvc4 = 'CVC4', z3 = 'Z3', q3b = 'Q3B', q3bOA = 'Q3B+OA', q3bOAnoOpt = 'Q3B+OA-opt')

We need to modify all times for results other than sat or unsat to have the maximal values of walltime and CPU-time.

cpuTimeout <- 5400

for (i in names(res))
{
  res[[i]][['trivial']] <- TRUE

  for (c in configurations)
  {
    res[[i]][[paste(c, 'solved', sep='.')]] <- res[[i]][[paste(c, 'result', sep='.')]] == "sat" | res[[i]][[paste(c, 'result', sep='.')]] == "unsat"
    res[[i]][[paste(c, 'cputime', sep='.')]][!res[[i]][[paste(c, 'solved', sep='.')]]] <- cpuTimeout
    res[[i]][[paste(c, 'walltime', sep='.')]][!res[[i]][[paste(c, 'solved', sep='.')]]] <- cpuTimeout/3
    res[[i]][['trivial']] <- res[[i]][['trivial']] & res[[i]][[paste(c, 'cputime', sep='.')]] < 0.1
  }
}

res$all <- rbind(res$wintersteiger, rbind(res$preiner, res$heizmann))

3.3 Check correctness of results

We need to check that no two solvers disagreed on the status of a benchmark (i.e. sat vs unsat). The result of the following command should be empty!

res$all %>%
    mutate(sat = ((boolector.result == "sat") | (cvc4.result == "sat") | (z3.result == "sat") |  (q3b.result == "sat") | (q3bOA.result == "sat")),
           unsat = ((boolector.result == "unsat") | (cvc4.result == "unsat") | (z3.result == "unsat") |  (q3b.result == "unsat") | (q3bOA.result == "unsat"))) %>%
    filter(sat & unsat) %>%
    select(benchmark, boolector.result, cvc4.result, z3.result, q3b.result, q3bOA.result)

benchmark

boolector.result

cvc4.result

z3.result

q3b.result

q3bOA.result

4 Statistics

4.1 Numbers of solved formulas

4.1.1 Helper function to generate tables

getTable <- function(benchmarkSet)
{
  counts <- list()

  for (c in configurations)
  {
    counts[[c]] <- count_(res[[benchmarkSet]], paste(c, 'result', sep='.'))
    colnames(counts[[c]]) <- c('result', c)
  }

  return(Reduce(function(...) merge(..., all=TRUE), counts))
}

4.1.2 Wintersteiger

getTable('wintersteiger')

result	boolector	cvc4	z3	q3b	q3bOA	q3bOAnoOpt
OUT OF MEMORY	nil	nil	7	nil	1	1
sat	66	83	71	94	94	93
timeout	31	19	20	3	2	3
unsat	94	89	93	94	94	94

4.1.3 Preiner

getTable('preiner')

result	boolector	cvc4	z3	q3b	q3bOA	q3bOAnoOpt
OUT OF MEMORY	nil	nil	6	5	1	nil
sat	519	453	475	507	524	524
timeout	66	165	103	241	87	204
unsat	4244	4211	4245	4076	4217	4101

4.1.4 Heizmann

getTable('heizmann')

result	boolector	cvc4	z3	q3b	q3bOA	q3bOAnoOpt
OUT OF MEMORY	nil	nil	3	nil	nil	nil
sat	17	18	13	19	20	20
timeout	100	6	94	19	17	17
unsat	14	107	21	93	94	94

4.1.5 Total

getTable('all')

result	boolector	cvc4	z3	q3b	q3bOA	q3bOAnoOpt
OUT OF MEMORY	nil	nil	16	5	2	1
sat	602	554	559	620	638	637
timeout	197	190	217	263	106	224
unsat	4352	4407	4359	4263	4405	4289

4.2 Solved formulas in benchmark families

res$all %>%
  group_by(source, family) %>%
  summarise(boolector = sum(boolector.solved),
            cvc4 = sum(cvc4.solved),
            z3 = sum(z3.solved),
            q3b = sum(q3b.solved),
            q3bOA = sum(q3bOA.solved),
            q3bOAnoOpt = sum(q3bOAnoOpt.solved),)

source	family	boolector	cvc4	z3	q3b	q3bOA	q3bOAnoOpt
heizmann	nil	31	125	34	112	114	114
preiner	keymaera	4027	3997	4030	3890	4010	3894
preiner	psyco	193	191	193	176	180	180
preiner	scholl-smt08	319	252	271	291	325	325
preiner	tptp	72	73	73	73	73	73
preiner	UltimateAutomizer	152	151	153	153	153	153
wintersteiger	fixpoint	119	126	110	129	129	128
wintersteiger	ranking	41	46	54	59	59	59

4.2.1 Only sat

res$all %>%
  filter(z3.result == 'sat' | boolector.result == 'sat' | cvc4.result == 'sat'  | q3b.result == 'sat' | q3bOA.result == 'sat' ) %>%
  group_by(source, family) %>%
  summarise(boolector = sum(boolector.solved),
            cvc4 = sum(cvc4.solved),
            z3 = sum(z3.solved),
            q3b = sum(q3b.solved),
            q3bOA = sum(q3bOA.solved),
            q3bOAnoOpt = sum(q3bOAnoOpt.solved))

source	family	boolector	cvc4	z3	q3b	q3bOA	q3bOAnoOpt
heizmann	nil	17	18	13	19	20	20
preiner	keymaera	108	78	108	104	104	104
preiner	psyco	131	129	131	131	131	131
preiner	scholl-smt08	248	215	203	239	256	256
preiner	tptp	17	17	17	17	17	17
preiner	UltimateAutomizer	15	14	16	16	16	16
wintersteiger	fixpoint	45	51	36	54	54	53
wintersteiger	ranking	21	32	35	40	40	40

4.2.2 Only unsat

res$all %>%
  filter(z3.result == 'unsat' | boolector.result == 'unsat' | cvc4.result == 'unsat' | q3b.result == 'unsat' | q3bOA.result == 'unsat' ) %>%
  group_by(source, family) %>%
  summarise(boolector = sum(boolector.solved),
            cvc4 = sum(cvc4.solved),
            z3 = sum(z3.solved),
            q3b = sum(q3b.solved),
            q3bOA = sum(q3bOA.solved),
            q3bOAnoOpt = sum(q3bOAnoOpt.solved))

source	family	boolector	cvc4	z3	q3b	q3bOA	q3bOAnoOpt
heizmann	nil	14	107	21	93	94	94
preiner	keymaera	3919	3919	3922	3786	3906	3790
preiner	psyco	62	62	62	45	49	49
preiner	scholl-smt08	71	37	68	52	69	69
preiner	tptp	55	56	56	56	56	56
preiner	UltimateAutomizer	137	137	137	137	137	137
wintersteiger	fixpoint	74	75	74	75	75	75
wintersteiger	ranking	20	14	19	19	19	19

4.3 Uniquely solved benchmarks

4.3.1 Only by Z3

res$all %>%
  filter(z3.solved & !boolector.solved & !cvc4.solved & !q3b.solved & !q3bOA.solved) %>%
  select(source, family, benchmark) %>%
  group_by(source, family) %>%
  summarise(count = n())

source	family	count
preiner	keymaera	1
preiner	scholl-smt08	2

4.3.2 Only by Boolector

res$all %>%
  filter(!z3.solved & boolector.solved & !cvc4.solved & !q3b.solved & !q3bOA.solved) %>%
  select(source, family, benchmark) %>%
  group_by(source, family) %>%
  summarise(count = n())

source	family	count
preiner	keymaera	1
preiner	scholl-smt08	11

4.3.3 Only by CVC4

res$all %>%
  filter(!z3.solved & !boolector.solved & cvc4.solved & !q3b.solved & !q3bOA.solved) %>%
  select(source, family, benchmark) %>%
  group_by(source, family) %>%
  summarise(count = n())

source	family	count
heizmann	nil	5
preiner	scholl-smt08	1

4.3.4 Only by Q3B with OpApprox

res$all %>%
  filter(!z3.solved & !boolector.solved & !cvc4.solved & !q3b.solved & q3bOA.solved) %>%
  select(source, family, benchmark) %>%
  group_by(source, family) %>%
  summarise(count = n())

source	family	count
heizmann	nil	1
preiner	scholl-smt08	3

4.3.5 Only by Q3B with OpApprox (excluding the original Q3B)

res$all %>%
  filter(!z3.solved & !boolector.solved & !cvc4.solved & q3bOA.solved) %>%
  select(source, family, benchmark) %>%
  group_by(source, family) %>%
  summarise(count = n())

source	family	count
heizmann	nil	1
preiner	scholl-smt08	13
wintersteiger	fixpoint	3
wintersteiger	ranking	3

4.3.6 By none of the solvers

res$all %>%
  filter(!z3.solved & !boolector.solved & !cvc4.solved & !q3b.solved & !q3bOA.solved) %>%
  select(source, family, benchmark) %>%
  group_by(source, family) %>%
  summarise(count = n())

source	family	count
heizmann	nil	2
preiner	keymaera	4
preiner	psyco	1
preiner	scholl-smt08	29
wintersteiger	fixpoint	2

4.4 Cross comparison

4.4.1 Helper function to generate tables

First we need a function which for given configurations computes a number of benchmarks that the first configuration has solved, but the second one has not.

firstIsBetter <- function(benchmarkSet, c1, c2)
{
  c1Solved <- res[[benchmarkSet]][[paste(c1, 'solved', sep='.')]]
  c2Solved <- res[[benchmarkSet]][[paste(c2, 'solved', sep='.')]]

  onlyC1Solved <- c1Solved & !(c2Solved)
  return(onlyC1Solved)
}

formulasFirstIsBetter <- function(benchmarkSet, c1, c2)
{
  return(res[[benchmarkSet]]$benchmark[firstIsBetter(benchmarkSet, c1, c2)])
}

compareConfigurations <- function(benchmarkSet, c1, c2)
{
  return(sum(firstIsBetter(benchmarkSet, c1, c2)))
}

We can use this function to generate the cross table.

crossTable <- function(benchmarkSet)
{
  results <- c()
  for (c1 in configurations)
  {
    for (c2 in configurations)
    {
      results <- c(results, compareConfigurations(benchmarkSet, c1, c2))
    }
  }

  results.table <- matrix(results, ncol=6,byrow=TRUE)
  colnames(results.table) <- configurations
  rownames(results.table) <- configurations
  out <- as.table(results.table)
  return(out)
}

4.4.2 Wintersteiger

crossTable('wintersteiger')

	boolector	cvc4	z3	q3b	q3bOA	q3bOAnoOpt
boolector	0	8	11	1	1	1
cvc4	20	0	19	0	0	0
z3	15	11	0	1	1	1
q3b	29	16	25	0	0	1
q3bOA	29	16	25	0	0	1
q3bOAnoOpt	28	15	24	0	0	0

4.4.3 Preiner

crossTable('preiner')

	boolector	cvc4	z3	q3b	q3bOA	q3bOAnoOpt
boolector	0	108	58	200	49	165
cvc4	9	0	31	172	36	151
z3	15	87	0	184	37	153
q3b	20	91	47	0	0	0
q3bOA	27	113	58	158	0	116
q3bOAnoOpt	27	112	58	42	0	0

4.4.4 Heizmann

crossTable('heizmann')

	boolector	cvc4	z3	q3b	q3bOA	q3bOAnoOpt
boolector	0	3	7	2	1	1
cvc4	97	0	94	14	14	14
z3	10	3	0	11	10	10
q3b	83	1	89	0	1	1
q3bOA	84	3	90	3	0	0
q3bOAnoOpt	84	3	90	3	0	0

4.5 Formulas, where the result is different

4.5.1 Wintersteiger

formulasFirstIsBetter('wintersteiger', 'q3b', 'q3bOA')

formulasFirstIsBetter('wintersteiger', 'q3bOA', 'q3b')

4.5.2 Preiner

formulasFirstIsBetter('preiner', 'q3b', 'q3bOA')

formulasFirstIsBetter('preiner', 'q3bOA', 'q3b')

	x
1	Ecoli-chemotaxis-node7007.smt2
2	Ecoli-chemotaxis-node7008.smt2
3	Ecoli-chemotaxis-node8284.smt2
4	Ecoli-chemotaxis-node8285.smt2
5	binary_driver-2007-10-09-node10280.smt2
6	binary_driver-2007-10-09-node11384.smt2
7	binary_driver-2007-10-09-node12553.smt2
8	binary_driver-2007-10-09-node13792.smt2
9	binary_driver-2007-10-09-node14896.smt2
10	binary_driver-2007-10-09-node8746.smt2
11	dccs-example-node3897.smt2
12	dccs-example-simple-node3459.smt2
13	dccs-example-simple-node6247.smt2
14	intersection-example-onelane.proof-node11126.smt2
15	intersection-example-onelane.proof-node11136.smt2
16	intersection-example-onelane.proof-node12481.smt2
17	intersection-example-onelane.proof-node12491.smt2
18	intersection-example-onelane.proof-node12962.smt2
19	intersection-example-onelane.proof-node12972.smt2
20	intersection-example-onelane.proof-node13822.smt2
21	intersection-example-onelane.proof-node13832.smt2
22	intersection-example-onelane.proof-node14158.smt2
23	intersection-example-onelane.proof-node14168.smt2
24	intersection-example-onelane.proof-node1469.smt2
25	intersection-example-onelane.proof-node1479.smt2
26	intersection-example-onelane.proof-node16095.smt2
27	intersection-example-onelane.proof-node16105.smt2
28	intersection-example-onelane.proof-node17872.smt2
29	intersection-example-onelane.proof-node17882.smt2
30	intersection-example-onelane.proof-node18278.smt2
31	intersection-example-onelane.proof-node18288.smt2
32	intersection-example-onelane.proof-node19598.smt2
33	intersection-example-onelane.proof-node20269.smt2
34	intersection-example-onelane.proof-node20279.smt2
35	intersection-example-onelane.proof-node21152.smt2
36	intersection-example-onelane.proof-node21162.smt2
37	intersection-example-onelane.proof-node21488.smt2
38	intersection-example-onelane.proof-node21498.smt2
39	intersection-example-onelane.proof-node21762.smt2
40	intersection-example-onelane.proof-node21772.smt2
41	intersection-example-onelane.proof-node23307.smt2
42	intersection-example-onelane.proof-node23317.smt2
43	intersection-example-onelane.proof-node23782.smt2
44	intersection-example-onelane.proof-node24127.smt2
45	intersection-example-onelane.proof-node24137.smt2
46	intersection-example-onelane.proof-node25171.smt2
47	intersection-example-onelane.proof-node25181.smt2
48	intersection-example-onelane.proof-node2524.smt2
49	intersection-example-onelane.proof-node2534.smt2
50	intersection-example-onelane.proof-node26897.smt2
51	intersection-example-onelane.proof-node29803.smt2
52	intersection-example-onelane.proof-node29813.smt2
53	intersection-example-onelane.proof-node30209.smt2
54	intersection-example-onelane.proof-node30219.smt2
55	intersection-example-onelane.proof-node31529.smt2
56	intersection-example-onelane.proof-node32239.smt2
57	intersection-example-onelane.proof-node32249.smt2
58	intersection-example-onelane.proof-node32497.smt2
59	intersection-example-onelane.proof-node32507.smt2
60	intersection-example-onelane.proof-node34026.smt2
61	intersection-example-onelane.proof-node34036.smt2
62	intersection-example-onelane.proof-node35453.smt2
63	intersection-example-onelane.proof-node37008.smt2
64	intersection-example-onelane.proof-node37018.smt2
65	intersection-example-onelane.proof-node38360.smt2
66	intersection-example-onelane.proof-node38370.smt2
67	intersection-example-onelane.proof-node3855.smt2
68	intersection-example-onelane.proof-node3865.smt2
69	intersection-example-onelane.proof-node39715.smt2
70	intersection-example-onelane.proof-node39725.smt2
71	intersection-example-onelane.proof-node40196.smt2
72	intersection-example-onelane.proof-node40206.smt2
73	intersection-example-onelane.proof-node41056.smt2
74	intersection-example-onelane.proof-node41066.smt2
75	intersection-example-onelane.proof-node41392.smt2
76	intersection-example-onelane.proof-node41402.smt2
77	intersection-example-onelane.proof-node4261.smt2
78	intersection-example-onelane.proof-node4271.smt2
79	intersection-example-onelane.proof-node43329.smt2
80	intersection-example-onelane.proof-node43339.smt2
81	intersection-example-onelane.proof-node45106.smt2
82	intersection-example-onelane.proof-node45116.smt2
83	intersection-example-onelane.proof-node45512.smt2
84	intersection-example-onelane.proof-node45522.smt2
85	intersection-example-onelane.proof-node46832.smt2
86	intersection-example-onelane.proof-node47503.smt2
87	intersection-example-onelane.proof-node47513.smt2
88	intersection-example-onelane.proof-node48386.smt2
89	intersection-example-onelane.proof-node48396.smt2
90	intersection-example-onelane.proof-node48722.smt2
91	intersection-example-onelane.proof-node48732.smt2
92	intersection-example-onelane.proof-node48996.smt2
93	intersection-example-onelane.proof-node49006.smt2
94	intersection-example-onelane.proof-node50541.smt2
95	intersection-example-onelane.proof-node50551.smt2
96	intersection-example-onelane.proof-node51016.smt2
97	intersection-example-onelane.proof-node51361.smt2
98	intersection-example-onelane.proof-node51371.smt2
99	intersection-example-onelane.proof-node52405.smt2
100	intersection-example-onelane.proof-node52415.smt2
101	intersection-example-onelane.proof-node53595.smt2
102	intersection-example-onelane.proof-node53901.smt2
103	intersection-example-onelane.proof-node53911.smt2
104	intersection-example-onelane.proof-node54078.smt2
105	intersection-example-onelane.proof-node5581.smt2
106	intersection-example-onelane.proof-node6556.smt2
107	intersection-example-onelane.proof-node6566.smt2
108	intersection-example-onelane.proof-node6814.smt2
109	intersection-example-onelane.proof-node6824.smt2
110	intersection-example-onelane.proof-node8099.smt2
111	intersection-example-onelane.proof-node8109.smt2
112	intersection-example-onelane.proof-node9774.smt2
113	intersection-example-onelane.proof-node9784.smt2
114	vsl.proof-node1351.smt2
115	vsl.proof-node1722.smt2
116	vsl.proof-node2202.smt2
117	vsl.proof-node2735.smt2
118	vsl.proof-node3106.smt2
119	vsli-alert.proof-node2416.smt2
120	vsli.proof-node2282.smt2
121	016.smt2
122	060.smt2
123	183.smt2
124	184.smt2
125	RND/RND_3_12.smt2
126	RND/RND_3_19.smt2
127	RND/RND_3_25.smt2
128	RND/RND_4_19.smt2
129	RND/RND_4_21.smt2
130	RND/RND_4_22.smt2
131	RND/RND_4_30.smt2
132	RND/RND_6_10.smt2
133	RND/RND_6_12.smt2
134	RND/RND_6_13.smt2
135	RND/RND_6_14.smt2
136	RND/RND_6_16.smt2
137	RND/RND_6_17.smt2
138	RND/RND_6_19.smt2
139	RND/RND_6_20.smt2
140	RND/RND_6_21.smt2
141	RND/RND_6_23.smt2
142	RND/RND_6_24.smt2
143	RND/RND_6_27.smt2
144	RND/RND_6_28.smt2
145	RND/RND_6_29.smt2
146	RND/RND_6_30.smt2
147	RND/RND_6_31.smt2
148	RND/RND_6_33.smt2
149	RND/RND_6_35.smt2
150	RND/RND_6_36.smt2
151	RND/RND_6_37.smt2
152	RND/RND_6_8.smt2
153	RNDPRE/RNDPRE_4_24.smt2
154	RNDPRE/RNDPRE_4_32.smt2
155	RNDPRE/RNDPRE_4_35.smt2
156	RNDPRE/RNDPRE_4_55.smt2
157	RNDPRE/RNDPRE_4_64.smt2
158	RNDPRE/RNDPRE_4_65.smt2

4.5.3 Heizmann

formulasFirstIsBetter('heizmann', 'q3b', 'q3bOA')

	x
1	sum02_false-unreach-call_true-no-overflow.i_336.smt2

formulasFirstIsBetter('heizmann', 'q3bOA', 'q3b')

	x
1	sum02_false-unreach-call_true-no-overflow.c_415.smt2
2	sum02_true-unreach-call_true-no-overflow.i_375.smt2
3	sum02_true-unreach-call_true-no-overflow.i_416.smt2

4.6 Differences in time

4.6.1 Helper functions

We define a function, which compares two configurations and returns benchmarks that were faster in the first configuration by at least 0.5 s.

getFaster <- function(benchmarkSet, c1, c2)
{
    firstIsBetter <- (res[[benchmarkSet]][[paste(c1, 'cputime', sep='.')]] + 0.5 < res[[benchmarkSet]][[paste(c2, 'cputime', sep='.')]]) &
        (res[[benchmarkSet]][[paste(c2, 'solved', sep='.')]])
    return(res[[benchmarkSet]][firstIsBetter, c('family', 'benchmark', paste(c1, 'cputime', sep='.'), paste(c2, 'cputime', sep='.'))])
}

getResourceConsumption <- function(benchmarkSet)
{
    d <- res[[benchmarkSet]]
    d[which((d$q3b.result == "sat" & d$q3bOA.result == "sat") | (d$q3b.result == "unsat" & d$q3bOA.result == "unsat")),] %>%
      summarise(q3bCPU = sum(q3b.cputime),
                q3bMEM = sum(q3b.memusage),
                q3bOACPU = sum(q3bOA.cputime),
                q3bOAMEM = sum(q3bOA.memusage))
}

4.6.2 Total time/memory taken

getResourceConsumption('wintersteiger')

q3bCPU	q3bMEM	q3bOACPU	q3bOAMEM
10271.914595016	35347300352	14527.289808636	47733235712

getResourceConsumption('preiner')

q3bCPU	q3bMEM	q3bOACPU	q3bOAMEM
56547.469152472	185058263040	36869.809526722	155845062656

getResourceConsumption('heizmann')

q3bCPU	q3bMEM	q3bOACPU	q3bOAMEM
1829.125165153	17732628480	771.060594065	18478931968

4.6.3 Degraded performance

These are the results where the approximations increase the solving time by more than 0.5 s.

Total count
```
nrow(getFaster('all', 'q3b', 'q3bOA'))
```
x

115

x
115

Wintersteiger

getFaster('wintersteiger', 'q3b', 'q3bOA')

family	benchmark	q3b.cputime	q3bOA.cputime
ranking	1394diag_ioctl.c.smt2	671.587307652	1417.905386247
ranking	1394diag_isochapi.c.smt2	107.42415153	145.690326377
ranking	AVStream_hwsim.cpp.smt2	1.177106004	2.45390292
ranking	audio_ac97_common.cpp.smt2	107.182787838	146.083092278
ranking	audio_ac97_rtstream.cpp.smt2	107.514638853	146.758227597
ranking	audio_ac97_wavepcistream.cpp.smt2	1470.802759781	3322.724922215
ranking	audio_ddksynth_voice.cpp.smt2	0.467101721	5.540378279
ranking	audio_dmusuart_mpu.cpp.smt2	107.488648664	146.569389932
ranking	audio_gfxswap.xp_filter.cpp.smt2	0.851135804	1.558473792
ranking	filesys_cdfs_allocsup.c.smt2	132.626686447	161.650561263
ranking	filesys_fastfat_cachesup.c.smt2	107.181146596	145.880798036
ranking	filesys_fastfat_easup.c.smt2	109.305597157	145.953210713
ranking	general_pcidrv_sys_hw_eeprom.c.smt2	0.173784249	3.002112054
ranking	hid_firefly_app_firefly.cpp.smt2	48.802417474	134.542711733
ranking	hid_hclient_ecdisp.c.smt2	113.192036922	150.542453366
ranking	input_pnpi8042_moudep.c.smt2	108.212822482	156.439056916
ranking	kernel_uagp35_gart.c.smt2	107.280160455	155.555740697
ranking	kmdf_osrusbfx2_exe_dump.c.smt2	0.640004817	8.035077041
ranking	mmedia_gsm610_gsm610.c.smt2	113.079313483	157.687509459
ranking	mmedia_imaadpcm_imaadpcm.c.smt2	14.977591171	23.512965943
ranking	network_irda_miniport_nscirda_comm.c.smt2	0.63599908	6.175644587
ranking	network_ndis_coisdn_TpiParam.c.smt2	111.981431636	156.908094151
ranking	network_ndis_rtlnwifi_extsta_st_aplst.c.smt2	107.853437712	154.784069571
ranking	network_ndis_rtlnwifi_extsta_st_misc.c.smt2	523.67354059	1562.146911173
ranking	network_usbnwifi_mp_util.c.smt2	2.798840558	17.405900201

Preiner

getFaster('preiner', 'q3b', 'q3bOA')

family	benchmark	q3b.cputime	q3bOA.cputime
keymaera	ETCS-essentials-node3023.smt2	0.761381522	1.453021719
keymaera	binary_driver-2007-10-09-node12552.smt2	3.074012997	4.915266169
keymaera	binary_driver-2007-10-09-node8745.smt2	5.05642805	7.892995259
keymaera	bouncing-ball-simple-node5920.smt2	2.702275935	7.898430651
keymaera	breaking-node2128.smt2	0.797799935	1.503937369
keymaera	intersection-example-onelane.proof-node12517.smt2	1.055366416	1.884650801
keymaera	intersection-example-onelane.proof-node31286.smt2	0.852529758	1.500007313
keymaera	intersection-example-onelane.proof-node39751.smt2	1.056686747	1.895434925
keymaera	intersection-example-onelane.proof-node5338.smt2	0.843131359	1.492254846
keymaera	safety-lemma-node13046.smt2	1.664440236	3.297497288
keymaera	train_goal6-node8607.smt2	1.628834489	3.262541088
keymaera	vsli-alert.proof-node2442.smt2	43.786972111	87.403758318
keymaera	vsli.proof-node2308.smt2	49.174914674	106.276966507
psyco	005.smt2	1.180574684	18.092380629
psyco	006.smt2	1.109374699	17.884192677
psyco	036.smt2	330.28922678	333.358735238
psyco	037.smt2	324.149088401	329.421187357
psyco	079.smt2	723.919693039	736.108938808
psyco	080.smt2	685.342760807	707.018101909
psyco	083.smt2	676.556121597	726.305845114
psyco	084.smt2	713.627832156	720.153448149
psyco	115.smt2	2.113850465	3.73514407
psyco	116.smt2	2.12203046	32.312203297
psyco	138.smt2	157.29214281	162.47832241
psyco	143.smt2	0.339719648	0.903540082
psyco	153.smt2	0.710333882	1.777799322
psyco	154.smt2	0.686893367	2.016368237
psyco	159.smt2	1.373608934	8.626490044
psyco	170.smt2	2898.514730796	2927.011825948
psyco	172.smt2	3.407084539	6.737689669
psyco	173.smt2	3.395646074	40.100174375
scholl-smt08	RND/RND_3_13.smt2	160.775761375	164.006917485
scholl-smt08	RND/RND_3_2.smt2	211.921715074	370.427616215
scholl-smt08	RND/RND_3_23.smt2	11.440463161	17.779460724
scholl-smt08	RND/RND_3_26.smt2	38.51347549	64.442988046
scholl-smt08	RND/RND_3_3.smt2	81.823767675	121.484194662
scholl-smt08	RND/RND_3_4.smt2	40.988748903	57.68242831
scholl-smt08	RND/RND_3_6.smt2	4.447337029	5.056113461
scholl-smt08	RND/RND_4_1.smt2	1358.110785151	4596.355982227
scholl-smt08	RND/RND_4_10.smt2	23.57007602	31.78109152
scholl-smt08	RND/RND_4_17.smt2	16.781952943	20.902500698
scholl-smt08	RND/RND_4_5.smt2	455.790696526	609.616239804
scholl-smt08	RND/RND_4_7.smt2	87.283331007	89.21377268
scholl-smt08	RND/RND_6_1.smt2	260.370919081	344.469927938
scholl-smt08	RNDPRE/RNDPRE_3_1.smt2	2.8637689	3.506070649
scholl-smt08	RNDPRE/RNDPRE_3_11.smt2	22.353424387	33.376241487
scholl-smt08	RNDPRE/RNDPRE_3_12.smt2	80.83653691	94.851198525
scholl-smt08	RNDPRE/RNDPRE_3_14.smt2	2.048917488	2.716594188
scholl-smt08	RNDPRE/RNDPRE_3_18.smt2	23.409304934	35.633548173
scholl-smt08	RNDPRE/RNDPRE_3_20.smt2	4.077024344	4.797727861
scholl-smt08	RNDPRE/RNDPRE_3_21.smt2	80.763015609	93.066239118
scholl-smt08	RNDPRE/RNDPRE_3_22.smt2	1165.82234427	1338.829963454
scholl-smt08	RNDPRE/RNDPRE_3_24.smt2	10.191486414	11.635671919
scholl-smt08	RNDPRE/RNDPRE_3_31.smt2	63.863727399	68.420517213
scholl-smt08	RNDPRE/RNDPRE_3_39.smt2	57.550011084	60.737275742
scholl-smt08	RNDPRE/RNDPRE_3_41.smt2	56.980588568	62.139511867
scholl-smt08	RNDPRE/RNDPRE_3_44.smt2	48.294877044	67.466062472
scholl-smt08	RNDPRE/RNDPRE_3_45.smt2	2416.317217598	3767.803495442
scholl-smt08	RNDPRE/RNDPRE_3_49.smt2	36.455572791	43.328566235
scholl-smt08	RNDPRE/RNDPRE_3_51.smt2	185.475250077	215.754833315
scholl-smt08	RNDPRE/RNDPRE_3_53.smt2	93.477684338	116.191977579
scholl-smt08	RNDPRE/RNDPRE_3_59.smt2	42.526751455	49.431820069
scholl-smt08	RNDPRE/RNDPRE_3_6.smt2	2.511326697	3.655771737
scholl-smt08	RNDPRE/RNDPRE_4_33.smt2	263.254385614	281.938122092
scholl-smt08	RNDPRE/RNDPRE_4_38.smt2	340.824356162	743.455711418
scholl-smt08	RNDPRE/RNDPRE_4_4.smt2	795.058177052	1080.018525106
scholl-smt08	RNDPRE/RNDPRE_4_40.smt2	3053.529413943	3612.426750411
scholl-smt08	RNDPRE/RNDPRE_4_57.smt2	44.734779512	45.340850489
scholl-smt08	RNDPRE/RNDPRE_4_8.smt2	123.110106248	169.895047003
scholl-smt08	RNDPRE/RNDPRE_4_9.smt2	141.150958497	173.825892858

Heizmann

getFaster('heizmann', 'q3b', 'q3bOA')

family	benchmark	q3b.cputime	q3bOA.cputime
nil	gcd_2_true-unreach-call_true-no-overflow.i_914.smt2	3.114726554	4.101953446
nil	gcd_2_true-unreach-call_true-no-overflow.i_921.smt2	3.116258075	4.055646007
nil	jain_4_true-unreach-call_true-no-overflow.i_198.smt2	0.225999084	1.21812294
nil	jain_4_true-unreach-call_true-no-overflow.i_200.smt2	0.25686148	1.253770278
nil	jain_4_true-unreach-call_true-no-overflow.i_225.smt2	2.846460092	4.131623695
nil	jain_4_true-unreach-call_true-no-overflow.i_228.smt2	0.237294655	1.35334369
nil	jain_4_true-unreach-call_true-no-overflow.i_341.smt2	0.200606218	0.862380401
nil	jain_6_true-unreach-call_true-no-overflow.i_198.smt2	0.254291489	1.508441629
nil	jain_6_true-unreach-call_true-no-overflow.i_200.smt2	0.259098131	1.556182019
nil	jain_6_true-unreach-call_true-no-overflow.i_225.smt2	2.931025827	4.986284754
nil	jain_6_true-unreach-call_true-no-overflow.i_230.smt2	0.262546205	1.640234998
nil	jain_6_true-unreach-call_true-no-overflow.i_339.smt2	0.225196145	1.23780286
nil	jain_7_true-unreach-call_true-no-overflow.i_215.smt2	0.293578357	20.900286224
nil	jain_7_true-unreach-call_true-no-overflow.i_217.smt2	0.301615327	20.983302616
nil	jain_7_true-unreach-call_true-no-overflow.i_242.smt2	0.308568166	31.420537673
nil	jain_7_true-unreach-call_true-no-overflow.i_245.smt2	0.283402205	20.645164208
nil	jain_7_true-unreach-call_true-no-overflow.i_259.smt2	0.157248987	6.999356617
nil	jain_7_true-unreach-call_true-no-overflow.i_262.smt2	0.302941701	20.872302902
nil	jain_7_true-unreach-call_true-no-overflow.i_382.smt2	0.247529518	10.186497986
nil	jain_7_true-unreach-call_true-no-overflow.i_61.smt2	0.16028079	6.93921993

4.6.4 Improved performance

These are the results where the approximations decrease the solving time by more than 0.5 s.

Total count
```
nrow(getFaster('all', 'q3bOA', 'q3b'))
```
x

96
Wintersteiger
```
getFaster('wintersteiger', 'q3bOA', 'q3b')
```
family benchmark q3bOA.cputime q3b.cputime

fixpoint sdlx-fixpoint-7.smt2 636.680779933 645.128950166

fixpoint sdlx-fixpoint-8.smt2 5346.053308338 5381.851551904

x
96

family	benchmark	q3bOA.cputime	q3b.cputime
fixpoint	sdlx-fixpoint-7.smt2	636.680779933	645.128950166
fixpoint	sdlx-fixpoint-8.smt2	5346.053308338	5381.851551904

Preiner

getFaster('preiner', 'q3bOA', 'q3b')

family	benchmark	q3bOA.cputime	q3b.cputime
keymaera	binary_driver-2007-10-09-node10279.smt2	2.487087945	3.151799603
keymaera	binary_driver-2007-10-09-node13791.smt2	2.473819409	3.104345336
keymaera	safety-lemma-node14050.smt2	1.607410994	5.306416397
keymaera	safety-lemma-node9082.smt2	17.351520903	20.241532654
keymaera	train_goal1-node5682.smt2	1.600008342	5.295491251
keymaera	train_goal3-node5717.smt2	17.877822059	21.210864749
psyco	035.smt2	324.106964028	377.346064139
psyco	059.smt2	1.156345407	2436.124622957
psyco	078.smt2	697.445739388	700.323267796
psyco	081.smt2	729.281808289	730.011129883
psyco	082.smt2	695.503608239	731.548550458
psyco	085.smt2	714.349296492	726.842541605
psyco	086.smt2	716.430426521	727.375572516
psyco	087.smt2	714.251385993	726.47276434
psyco	088.smt2	701.917221941	731.765957719
psyco	124.smt2	1.395648821	2.377621553
psyco	155.smt2	0.45303503	2.529845927
psyco	168.smt2	1171.482072847	1173.113759855
psyco	195.smt2	100.771228139	101.59982281
scholl-smt08	RND/RND_3_1.smt2	1.889658294	5.811979496
scholl-smt08	RND/RND_3_11.smt2	5.429106369	349.341929162
scholl-smt08	RND/RND_3_14.smt2	17.897407595	623.609974835
scholl-smt08	RND/RND_3_15.smt2	0.770786603	6.461161507
scholl-smt08	RND/RND_3_16.smt2	4.545652793	37.449699345
scholl-smt08	RND/RND_3_17.smt2	11.241660131	14.752083302
scholl-smt08	RND/RND_3_21.smt2	10.772769046	16.427674641
scholl-smt08	RND/RND_3_22.smt2	85.696575773	3215.819319923
scholl-smt08	RND/RND_3_27.smt2	5.506705	7.966480083
scholl-smt08	RND/RND_3_29.smt2	13.103730901	138.46411448
scholl-smt08	RND/RND_3_9.smt2	0.94652083	8.436300399
scholl-smt08	RND/RND_4_11.smt2	8.563307467	84.37104354
scholl-smt08	RND/RND_4_12.smt2	9.53956596	4235.859544771
scholl-smt08	RND/RND_4_15.smt2	30.134178802	32.983549076
scholl-smt08	RND/RND_4_23.smt2	31.566834216	287.756033364
scholl-smt08	RND/RND_4_24.smt2	190.757992528	1322.358761372
scholl-smt08	RND/RND_4_25.smt2	167.120237002	333.547240883
scholl-smt08	RND/RND_4_28.smt2	192.878609488	216.088515036
scholl-smt08	RND/RND_4_29.smt2	35.178766725	1790.508208779
scholl-smt08	RND/RND_4_4.smt2	1045.328163469	1057.006101041
scholl-smt08	RND/RND_4_6.smt2	2.810378875	18.603396187
scholl-smt08	RND/RND_6_18.smt2	342.399324654	1782.288360113
scholl-smt08	RND/RND_6_3.smt2	0.649935062	1.675127776
scholl-smt08	RND/RND_6_4.smt2	1.133371754	62.324435998
scholl-smt08	RND/RND_6_5.smt2	5.200997536	22.330153093
scholl-smt08	RND/RND_6_6.smt2	5.270796785	1121.119919961
scholl-smt08	RND/RND_6_7.smt2	4.998338076	176.530199489
scholl-smt08	RND/RND_6_9.smt2	1.769435082	17.49054758
scholl-smt08	RNDPRE/RNDPRE_3_15.smt2	14.666402256	15.391217505
scholl-smt08	RNDPRE/RNDPRE_3_16.smt2	14.206145704	15.756987725
scholl-smt08	RNDPRE/RNDPRE_3_17.smt2	5.23517539	33.649540902
scholl-smt08	RNDPRE/RNDPRE_3_26.smt2	2.588325318	35.636075564
scholl-smt08	RNDPRE/RNDPRE_3_28.smt2	4.072746926	5.417138591
scholl-smt08	RNDPRE/RNDPRE_3_29.smt2	3.874189601	4.671661551
scholl-smt08	RNDPRE/RNDPRE_3_30.smt2	2.734287667	3.432511614
scholl-smt08	RNDPRE/RNDPRE_3_34.smt2	17.868906689	22.746956995
scholl-smt08	RNDPRE/RNDPRE_3_35.smt2	19.881819194	938.411815458
scholl-smt08	RNDPRE/RNDPRE_3_37.smt2	7.325950314	325.586238466
scholl-smt08	RNDPRE/RNDPRE_3_38.smt2	16.034573308	17.046350609
scholl-smt08	RNDPRE/RNDPRE_3_40.smt2	6.129053044	7.81847456
scholl-smt08	RNDPRE/RNDPRE_3_43.smt2	10.542567208	13.37075801
scholl-smt08	RNDPRE/RNDPRE_3_48.smt2	4.524957574	5.421733311
scholl-smt08	RNDPRE/RNDPRE_3_5.smt2	7.071562511	41.440126171
scholl-smt08	RNDPRE/RNDPRE_3_50.smt2	12.021425061	14.128029887
scholl-smt08	RNDPRE/RNDPRE_3_54.smt2	16.11967485	20.387409729
scholl-smt08	RNDPRE/RNDPRE_3_60.smt2	36.716722002	47.183605343
scholl-smt08	RNDPRE/RNDPRE_4_1.smt2	211.368804631	255.553955107
scholl-smt08	RNDPRE/RNDPRE_4_10.smt2	7.753270781	10.70993155
scholl-smt08	RNDPRE/RNDPRE_4_13.smt2	138.382260703	169.350536309
scholl-smt08	RNDPRE/RNDPRE_4_20.smt2	5.817725783	4756.116208186
scholl-smt08	RNDPRE/RNDPRE_4_22.smt2	79.681774593	818.135048049
scholl-smt08	RNDPRE/RNDPRE_4_23.smt2	61.594335349	63.358403247
scholl-smt08	RNDPRE/RNDPRE_4_25.smt2	6.842101137	8.586819705
scholl-smt08	RNDPRE/RNDPRE_4_27.smt2	7.144846459	319.995529854
scholl-smt08	RNDPRE/RNDPRE_4_29.smt2	11.442101052	486.974968373
scholl-smt08	RNDPRE/RNDPRE_4_3.smt2	30.108419838	42.660076666
scholl-smt08	RNDPRE/RNDPRE_4_30.smt2	733.131736181	1761.760700473
scholl-smt08	RNDPRE/RNDPRE_4_37.smt2	8.635494177	190.045851998
scholl-smt08	RNDPRE/RNDPRE_4_43.smt2	19.220412922	224.856578689
scholl-smt08	RNDPRE/RNDPRE_4_50.smt2	45.514374379	263.633406911
scholl-smt08	RNDPRE/RNDPRE_4_6.smt2	287.89092773	348.77595503
scholl-smt08	model/model_5_33.smt2	0.707994297	1.356916268
scholl-smt08	model/model_5_34.smt2	1.23627363	1.810174616
scholl-smt08	model/model_5_35.smt2	1.531462032	2.168357717
scholl-smt08	model/model_5_36.smt2	1.869723165	3.58982786
scholl-smt08	model/model_5_37.smt2	1.132253005	1.844461486
scholl-smt08	model/model_5_38.smt2	1.404746752	2.126453859
scholl-smt08	model/model_5_39.smt2	1.474160876	3.552230534
scholl-smt08	model/model_5_45.smt2	0.837594013	1.643754266

Heizmann

getFaster('heizmann', 'q3bOA', 'q3b')

family	benchmark	q3bOA.cputime	q3b.cputime
nil	gcd_2_true-unreach-call_true-no-overflow.i_925.smt2	12.024143788	1180.25749113
nil	gcd_3_true-unreach-call_true-no-overflow.i_1105.smt2	171.067154581	172.472060124
nil	jain_6_true-unreach-call_true-no-overflow.i_236.smt2	21.501500651	26.055018963
nil	verisec_sendmail__tTflag_arr_one_loop_false-unreach-call.i_1353.smt2	1.274247397	2.161401277
nil	verisec_sendmail__tTflag_arr_one_loop_false-unreach-call.i_2400.smt2	6.65083382	10.465717258
nil	verisec_sendmail__tTflag_arr_one_loop_false-unreach-call.i_2406.smt2	6.682220397	37.14365104

5 Plots

5.1 Scatter plots

5.1.1 Helper functions

We again define a function, which can generate a scatter plot for a given benchmark set and two configurations.

scatterPlot <- function(benchmarkSet, c1, c2)
{
return (ggplot(res[[benchmarkSet]],
      aes(res[[benchmarkSet]][[paste(c1, 'cputime', sep='.')]], res[[benchmarkSet]][[paste(c2, 'cputime', sep='.')]], colour=factor(q3b.result, c("timeout", "sat", "unsat", "out of memory"))), xlim=c(0.001,cpuTimeout), ylim=c(0.01,cpuTimeout)) +
      geom_point() +
      geom_abline(intercept=0) +
      geom_abline(intercept=1, color='gray') +
      geom_abline(intercept=-1, color='gray') +
      geom_abline(intercept=2, color='gray') +
      geom_abline(intercept=-2, color='gray') +
      xlab(c1) +
      ylab(c2) +
      scale_x_log10(limits = c(0.01, cpuTimeout), breaks = trans_breaks("log10", function(x) 10^x), labels = trans_format("log10", math_format(10^.x))) +
      scale_y_log10(limits = c(0.01, cpuTimeout), breaks = trans_breaks("log10", function(x) 10^x), labels = trans_format("log10", math_format(10^.x))) +
      guides(colour=FALSE) +
      theme(legend.title=element_blank()))

}

scatterPlotMem <- function(benchmarkSet, c1, c2)
{
return (ggplot(res[[benchmarkSet]],
      aes(res[[benchmarkSet]][[paste(c1, 'memusage', sep='.')]], res[[benchmarkSet]][[paste(c2, 'memusage', sep='.')]], colour=factor(q3b.result, c("timeout", "sat", "unsat", "out of memory"))), xlim=c(0.001,8000000000), ylim=c(0.01,8000000000)) +
      geom_point() +
      geom_abline(intercept=0) +
      xlab(c1) +
      ylab(c2) +
      scale_x_log10(limits = c(1000000, 16000000000), breaks = trans_breaks("log10", function(x) 10^x), labels = trans_format("log10", math_format(10^.x))) +
      scale_y_log10(limits = c(1000000, 16000000000), breaks = trans_breaks("log10", function(x) 10^x), labels = trans_format("log10", math_format(10^.x))) +
      guides(colour=FALSE) +
      theme(legend.title=element_blank()))

}

5.1.2 Wintersteiger

scatterPlot('wintersteiger', 'q3b', 'q3bOA')

scatterPlotMem('wintersteiger', 'q3b', 'q3bOA')

5.1.3 Preiner

scatterPlot('preiner', 'q3b', 'q3bOA')

scatterPlotMem('preiner', 'q3b', 'q3bOA')

5.1.4 Heizmann

scatterPlot('heizmann', 'q3b', 'q3bOA')

scatterPlotMem('heizmann', 'q3b', 'q3bOA')

5.2 Quantile plots

5.2.1 Helper functions

quantilePlot <- function(benchmarkSet, onlyTrivial = FALSE)
{
    num <- length(configurations)

    data <- res[[benchmarkSet]]

    if (onlyTrivial)
    {
        data <- filter(data, trivial == FALSE)
    }

    ordered = list()
    for (c in configurations)
    {
        ordered[[c]] = sort(data[[paste(c, 'cputime', sep='.')]][data[[paste(c, 'solved', sep='.')]]])
    }

    plot(c(0, nrow(data)), c(0.001, cpuTimeout), log='y', xlab='Solved formulas', ylab='CPU time (s)', frame.plot=TRUE, type='n', yaxt="n")
    axis(2, at = c(0.001, 0.01, 0.1, 1, 10, 100, 1000),
         labels = c(expression(paste("10"^"-3")),
                    expression(paste("10"^"-2")),
                    expression(paste("10"^"-1")),
                    "1",
                    "10",
                    expression(paste("10"^"2")),
                    expression(paste("10"^"3"))))

    colors <- c("blue", "darkgreen", "red", "black", "purple")
    ltys <- c(5,6,4,1,2)
    for (i in seq_along(configurations))
    {
        c <- configurations[i]
        lines(1:length(ordered[[c]]), ordered[[c]], type='s', col=colors[i], lty=ltys[i])
    }

    legend("topleft",
           lty=ltys,
           lwd=rep(2, each=num),
           col=colors,
           legend=labels)
}

quantilePlot('wintersteiger')

quantilePlot('preiner')

quantilePlot('heizmann')

quantilePlot('all')

5.3 Quantile plots of non-trivial benchmarks

This plot shows only result that are not trivial (i.e. some solver took more than 0.1 second to solve it)

This is the number of trivial benchmarks

nrow(filter(res$all, trivial))

quantilePlot('all', TRUE)

quantilePlot('all', TRUE)

5.4 Unsolved benchmarks

plotUnsolved <- function(cs)
{
    cs <- rev(cs)
    unsolved = data.frame(source=character(),
                          configuration=character(),
                          stringsAsFactors=TRUE)
    for (c in cs)
    {
        cUnsolved <- res$all[["source"]][!res$all[[paste(c, 'solved', sep='.')]]]
        cUnsolved <- data.frame(
            source = cUnsolved,
            configuration = labels[c])
        unsolved <- rbind(unsolved, cUnsolved)
    }

    chart.data <- unsolved %>%
                    group_by(source, configuration) %>%
                    summarize(freq = n()) %>%
                    arrange(desc(source)) %>%
                    group_by(configuration) %>%
                    mutate(pos = cumsum(freq) - (0.5 * freq))

    ggplot(data = chart.data, aes(x = configuration, y = freq, fill = source)) +
        geom_bar(stat="identity") +
        coord_flip() +
        geom_text(data=chart.data, aes(x = configuration, y = pos, label = freq), size=3) +
        labs(y = "Number of unsolved benchmarks (less is better)", x = NULL, fill = "Benchmark set") +
        scale_fill_brewer(palette = "Set2")
}

plotUnsolved(c('boolector', 'cvc4', 'z3', 'q3b', 'q3bOA'))

Approximation of Bit-Vector Operations for BDD-based SMT Solvers Experimental evaluation

Table of Contents

1 Tools

1.1 Boolector

1.2 CVC4

1.3 Z3

1.4 Q3B (vanilla)

1.5 Q3B (with operation approximations)

2 CSV files

2.1 Convert to a correct CSV

2.2 Split into benchmark sets

3 R environment

3.1 Load necessary libraries

3.2 Load all CSV files

3.3 Check correctness of results

4 Statistics

4.1 Numbers of solved formulas

4.1.1 Helper function to generate tables

4.1.2 Wintersteiger

4.1.3 Preiner

4.1.4 Heizmann

4.1.5 Total

4.2 Solved formulas in benchmark families

4.2.1 Only sat

4.2.2 Only unsat

4.3 Uniquely solved benchmarks

4.3.1 Only by Z3

4.3.2 Only by Boolector

4.3.3 Only by CVC4

4.3.4 Only by Q3B with OpApprox

4.3.5 Only by Q3B with OpApprox (excluding the original Q3B)

4.3.6 By none of the solvers

4.4 Cross comparison

4.4.1 Helper function to generate tables

4.4.2 Wintersteiger

4.4.3 Preiner

4.4.4 Heizmann

4.5 Formulas, where the result is different

4.5.1 Wintersteiger

4.5.2 Preiner

4.5.3 Heizmann

4.6 Differences in time

4.6.1 Helper functions

4.6.2 Total time/memory taken

4.6.3 Degraded performance

4.6.4 Improved performance

5 Plots

5.1 Scatter plots

5.1.1 Helper functions

5.1.2 Wintersteiger

5.1.3 Preiner

5.1.4 Heizmann

5.2 Quantile plots

5.2.1 Helper functions

5.3 Quantile plots of non-trivial benchmarks

5.4 Unsolved benchmarks

Approximation of Bit-Vector Operations for BDD-based SMT Solvers
Experimental evaluation
