esg::Geometry

Geometry Class Reference

#include <Geometry.h>

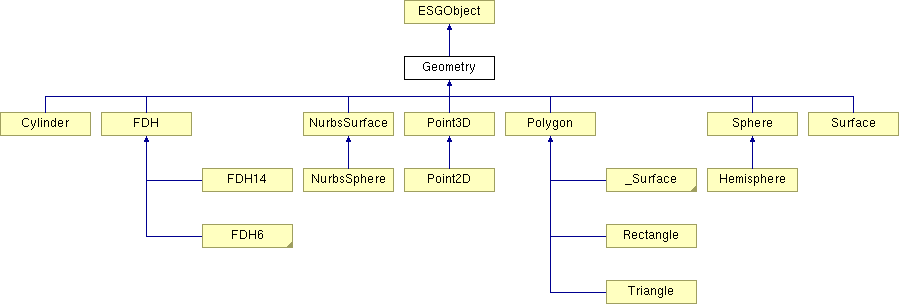

Inheritance diagram for Geometry:


Public Member Functions
	Geometry ()
virtual	~Geometry ()
void	insideOut (bool b)
virtual void	rayIntersection (PointEnv *pPE, int mask, const Vector3 &origin, const Vector3 &direction, float maxD=MAXFLOAT)=0
virtual bool	mapToUV (const Vector3 &v, Vector2 &uv)=0
virtual void	randomSample (int mask, PointEnv &pe, double *pdf)=0
virtual bool	randomDirection (const Vector3 &pov, Vector3 &dir, double *pdf)=0
virtual Interval	extent (const Vector3 &direction) const =0
Interval	extent (float x, float y, float z) const
virtual Vector3	centroid (void) const =0
virtual double	radius (const Vector3 &centroid) const =0
virtual double	radius (void) const
Geometry *	clone (void) const
virtual Geometry *	clone (const Matrix4 *pTrMat) const =0
virtual bool	separation (Geometry &geom, Vector3 *pDir)=0
virtual double	distance (const Geometry &geom, Vector3 *pDir)=0
virtual void	dump (const char intent, const char tab)=0
Mesh *	mesh (int density=0) const
virtual void	__debug ()
Static Public Attributes
static const float	EPS = 1e-03
	epsilon variation (tolerance) of zero
Protected Member Functions
virtual Mesh *	_mesh (int) const =0
virtual void	_duplicate_attributes (const Geometry &src)
virtual void	_rotateX (float)=0
virtual void	_rotateY (float)=0
virtual void	_rotateZ (float)=0
virtual void	_rotate (float, const Vector3 &)=0
virtual void	_rotate (const Matrix3 &)=0
virtual void	_translate (float, float, float)=0
virtual void	_transform (const Matrix4 &)=0
virtual void	_scale (float)=0
void	_translate (const Vector3 &v)
Protected Attributes
bool	_insideOut

Detailed Description

Geometry attribte of scene graph objects

Definition at line 18 of file Geometry.h.

Constructor & Destructor Documentation

Geometry ( ) [inline]

Contructor
Definition at line 44 of file Geometry.h.

virtual ~Geometry ( ) [inline, virtual]

Destructor
Definition at line 49 of file Geometry.h.

Member Function Documentation

virtual void __debug ( void ) [inline, virtual]

Reimplemented in _Surface, FDH, Polygon, Sphere, and Surface.
Definition at line 211 of file Geometry.h.
Referenced by BVH::__debug().

void _duplicate_attributes ( const Geometry & src ) [protected, virtual]

Reimplemented in _Surface, Cylinder, FDH, FDH14, Hemisphere, NurbsSurface, Point3D, Polygon, Rectangle, Sphere, Surface, and OSGPolygon.
Definition at line 7 of file Geometry.cc.
References Geometry::_insideOut.
Referenced by Polygon::_duplicate_attributes(), OSGPolygon::_duplicate_attributes(), NurbsSurface::_duplicate_attributes(), FDH::_duplicate_attributes(), Cylinder::_duplicate_attributes(), and _Surface::_duplicate_attributes().

virtual Mesh* _mesh ( int ) const [protected, pure virtual]

Implemented in _Surface, Cylinder, FDH, FDH14, FDH6, Hemisphere, NurbsSurface, Point3D, Polygon, Sphere, and Surface.
Referenced by Geometry::mesh().

virtual void _rotate ( const Matrix3 & ) [protected, pure virtual]

Implemented in _Surface, Cylinder, FDH, FDH14, Hemisphere, NurbsSurface, Point3D, Polygon, Rectangle, Sphere, and Surface.

virtual void _rotate ( float ,

const Vector3 &

) [protected, pure virtual]

Implemented in _Surface, Cylinder, FDH, FDH14, Hemisphere, NurbsSurface, Point3D, Polygon, Rectangle, Sphere, and Surface.

virtual void _rotateX ( float ) [protected, pure virtual]

Implemented in _Surface, Cylinder, FDH, FDH14, Hemisphere, NurbsSurface, Point2D, Point3D, Polygon, Rectangle, Sphere, and Surface.

virtual void _rotateY ( float ) [protected, pure virtual]

Implemented in _Surface, Cylinder, FDH, FDH14, Hemisphere, NurbsSurface, Point2D, Point3D, Polygon, Rectangle, Sphere, and Surface.

virtual void _rotateZ ( float ) [protected, pure virtual]

Implemented in _Surface, Cylinder, FDH, FDH14, Hemisphere, NurbsSurface, Point3D, Polygon, Rectangle, Sphere, and Surface.

virtual void _scale ( float ) [protected, pure virtual]

Implemented in _Surface, Cylinder, FDH, NurbsSurface, Point3D, Polygon, Rectangle, Sphere, and Surface.

virtual void _transform ( const Matrix4 & ) [protected, pure virtual]

Implemented in _Surface, Cylinder, FDH, FDH14, Hemisphere, NurbsSurface, Point3D, Polygon, Rectangle, Sphere, and Surface.

void _translate ( const Vector3 & v ) [inline, protected]

Definition at line 38 of file Geometry.h.

virtual void _translate ( float ,

float ,

float

) [protected, pure virtual]

Implemented in _Surface, Cylinder, FDH, NurbsSurface, Point2D, Point3D, Polygon, Rectangle, Sphere, and Surface.

virtual Vector3 centroid ( void ) const [pure virtual]

Returns:
centroid (point of gravity) of the geometry

Implemented in Cylinder, FDH, NurbsSurface, Point3D, Polygon, Sphere, and Surface.
Referenced by SphereTree::_enlarge_bv(), POGExplorer::_process_leaf(), Sphere::distance(), Point3D::distance(), Cylinder::distance(), Sphere::separation(), Point3D::separation(), Cylinder::separation(), and Sphere::Sphere().

virtual Geometry* clone ( const Matrix4 * pTrMat ) const [pure virtual]

Duplicates and transforms geometry

Parameters:

pTrMat transformation matrix of the clone or NULL

Returns:
duplicate (clone)

Implemented in _Surface, Cylinder, FDH, FDH14, FDH6, Hemisphere, NurbsSurface, Point2D, Point3D, Polygon, Sphere, Surface, Triangle, and OSGPolygon.

Geometry* clone ( void ) const [inline]

Duplicates geometry

Returns:
duplicate (clone)

Reimplemented in _Surface, and OSGPolygon.
Definition at line 155 of file Geometry.h.
Referenced by BVH::__get_edges(), BVH::__get_meshes(), ObjsInAreaExplorer::_accept_new_transformation(), SphereTree::_enlarge_bv(), FDHTree::_enlarge_bv(), BVExplorer::_iterate(), BVDistRot::BVDistRot(), and ObjsInAreaExplorer::ObjsInAreaExplorer().

virtual double distance ( const Geometry & geom,

Vector3 * pDir

) [pure virtual]

Computes approximate distance between this and given geometries (lower bound of distance)

Parameters:

geom geometry to check

pDir if presented then is set to normalized measured direction (vector of minimal distance)

Returns:
lower bound of distance, negative value indicates penetration, positive value indicates separation, zero indicates touch

Implemented in Cylinder, FDH, Hemisphere, NurbsSurface, Point3D, Polygon, Sphere, and Surface.
Referenced by BVDistRot::distance().

virtual void dump ( const char * intent,

const char * tab

) [pure virtual]

Writes information about this geometry to std. out.

Parameters:

intent free space before each line

tab free space added to intent inside description of this class

Implemented in _Surface, Cylinder, FDH, Hemisphere, NurbsSurface, Point3D, Polygon, Sphere, and Surface.
Referenced by BVH::_dump().

Interval extent ( float x,

float y,

float z

) const [inline]

Returns extent occupied by the geometry in given direction

Parameters:

x direction direction of extent - x coordinate

y direction direction of extent - y coordinate

z direction direction of extent - z coordinate

Returns:
extent of occupied space

Definition at line 124 of file Geometry.h.

virtual Interval extent ( const Vector3 & direction ) const [pure virtual]

Returns extent occupied by the geometry in given direction

Parameters:

direction direction of extent

Returns:
extent of occupied space

Implemented in Cylinder, FDH, FDH14, Hemisphere, NurbsSurface, Point3D, Polygon, Sphere, and Surface.
Referenced by FDH14DistRot::_distance(), FDHTree::_enlarge_bv(), IteratorBVH::_halfspace_search(), NExtentsExplorer::_process_leaf(), FDH14DistRot::_separation(), Point3D::distance(), FDH::distance(), Cylinder::distance(), FDH::FDH(), Point3D::separation(), and Cylinder::separation().

void insideOut ( bool b ) [inline]

Inverts facet normals (turns the object inside-out)

Parameters:

b determines wehether to turn the geometry inside-out

Definition at line 56 of file Geometry.h.

virtual bool mapToUV ( const Vector3 & v,

Vector2 & uv

) [pure virtual]

Maps 3D point from surface to the UV surface representation

Parameters:

v 3D point in the world coordinates

uv UV coordinates (relative to the surface)

Returns:
true on success, false otherwise (mainly if the 3D point does not lie on the surface)

Implemented in Cylinder, FDH, FDH6, Hemisphere, NurbsSurface, Point3D, Polygon, Sphere, and Surface.

Mesh * mesh ( int density = 0 ) const

Returns polygonal mesh computed from this geometry

Parameters:

density mesh density

Returns:
polygonal mesh

Definition at line 24 of file Geometry.cc.
References Geometry::_insideOut, Geometry::_mesh(), and Mesh::turnInsideOut().
Referenced by BVH::__get_edges(), BVH::__get_meshes(), NurbsSurface::_mesh(), and POVRayExporter::_process_leaf().

virtual double radius ( void ) const [inline, virtual]

Returns radius of minimal packing sphere with center in the ceontroid of the geometry

Parameters:

centroid center of packing sphere

Returns:
minimal packing radius

Reimplemented in Cylinder, NurbsSurface, Point3D, Sphere, and Surface.
Definition at line 148 of file Geometry.h.

virtual double radius ( const Vector3 & centroid ) const [pure virtual]

Returns radius of minimal packing sphere having given center

Parameters:

centroid center of packing sphere

Returns:
minimal packing radius

Implemented in Cylinder, FDH, Hemisphere, NurbsSurface, Point3D, Polygon, Sphere, and Surface.
Referenced by SphereTree::_enlarge_bv(), RadiusExplorer::_process_leaf(), Sphere::distance(), Sphere::separation(), and Sphere::Sphere().

bool randomDirection ( const Vector3 & pov,

Vector3 & dir,

double * pdf

) [pure virtual]

Computes random direction towards the surface in accord to the point of view.

Parameters:

pov point of view

dir computed random direction

pdf if present then it is set to the value of the Probability Density Function of the random point

Implemented in Cylinder, FDH, Hemisphere, NurbsSurface, Point3D, Polygon, Sphere, and Surface.
Definition at line 12 of file Geometry.cc.
References ENV_HAVE_INTERSECTION, ENV_WANT_INTERSECTION, PointEnv::intersection, PointEnv::mask, and Geometry::randomSample().

virtual void randomSample ( int mask,

PointEnv & pe,

double * pdf

) [pure virtual]

Computes random point on the surface

Parameters:

mask bitmask determining what to compute, see PointEnv.h

pe information about the computed random point on surface

pdf if present then it is set to the value of the Probability Density Function of the random point

Implemented in Cylinder, FDH, Hemisphere, NurbsSurface, Point3D, Polygon, Rectangle, Sphere, Surface, and Triangle.
Referenced by LightArray::emitPhoton(), and Geometry::randomDirection().

virtual void rayIntersection ( PointEnv * pPE,

int mask,

const Vector3 & origin,

const Vector3 & direction,

float maxD = MAXFLOAT

) [pure virtual]

Computes point of intersection of ray with this geometry

Parameters:

pPE structure in which the information about intersection point is stored; must be defined (not NULL)

mask bitmask determining what to compute, see PointEnv.h

origin ray's origin

direction normalized ray's direction

maxD maximal interesting distance; if the point of intersection can't be closer than this distance then the computation stops (object is too far away)

Implemented in Cylinder, FDH, Hemisphere, NurbsSurface, Point3D, Polygon, Sphere, and Surface.
Referenced by IteratorBVH::_first_ray_intersection(), IteratorBVH::_next_ray_intersection(), and Intersector::processCandidate().

virtual bool separation ( Geometry & geom,

Vector3 * pDir

) [pure virtual]

Checks if there is separation between this and given geometries

Parameters:

geom geometry to check

pDir if presented then is set to normalized direction to found separation (gap)

Returns:
true if thre is separation (gap), false otherwise

Implemented in Cylinder, FDH, Hemisphere, NurbsSurface, Point3D, Polygon, Sphere, and Surface.
Referenced by IteratorBVH::_area_search(), BVH::_collision(), and BVDistRot::separation().

Member Data Documentation

bool _insideOut [protected]

Definition at line 23 of file Geometry.h.
Referenced by Geometry::_duplicate_attributes(), and Geometry::mesh().

const float EPS = 1e-03 [static]

epsilon variation (tolerance) of zero

Definition at line 20 of file Geometry.h.
Referenced by FDH::_cut_line(), Sphere::_duplicate_attributes(), FDH::_get_corners(), FDH::_mesh(), Sphere::_scale(), Polygon::_triTriCollision(), Sphere::rayIntersection(), Polygon::rayIntersection(), Point3D::rayIntersection(), Hemisphere::rayIntersection(), Sphere::setRadius(), and Sphere::Sphere().

The documentation for this class was generated from the following files:

esg/include/esg/geometry/Geometry.h
esg/src/Geometry.cc
